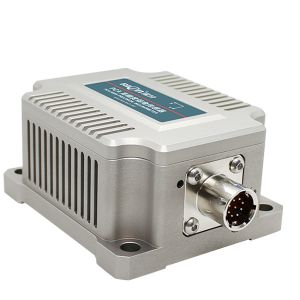

High Resolution Tilt Sensor Inclinometer With Temperature sensor built-in For Wind power
▶ INTRODUCTION
It Output interface RS485, RS422, RS232 optional. The non-contact installation makes PCA826T easy to install or integrate. Strong resistance to external electromagnetic interference, strong anti-shock and vibration ability, widely used in satellite communication system processing vehicles, radar antenna vehicles, etc.
▶ MAIN FEATURES
★ Biaxial tilt angle measurement
★ Range ±1～±60° optional
★ Horizontal/vertical optional
★ DC 9～36V wide voltage input
★ Wide temperature operation -40～+85℃
★ Resolution 0.0005°
★ Size: L82×W70×H42mm
★ Output mode CAN2.0A
▶ Usage for
★ Wind power monitoring
★ Bridge and Dam monitoring
★ Ancient building monitoring
★ High-speed rail track monitoring
★ Ground satellite communication vehicles
★ Railway gauge ruler and gauge leveling
★ Geological equipment tilt monitoring
★ Engineering vehicle leveling
Specification
| PCA826T | CONDITION | PARAMETERS | UNIT |
| Measure range | | ±5 | ±10 | ±30 | ±60 | ° |
| Measure axis | | XY | XY | XY | XY | |
| Resolution | | 0.0005 | 0.0005 | 0.0005 | 0.0005 | ° |
| Measure accuracy | @25℃ | 0.001 | 0.002 | 0.003 | 0.005 | ° |
| Long-term stability | | 0.02 | 0.02 | 0.03 | 0.04 | ° |
| Zero temp coefficient | -40～85℃ | 0.0002 | 0.0002 | 0.0002 | 0.0002 | °/℃ |
| Sensitivity temp coefficient | -40～85℃ | ≤50 | ≤50 | ≤50 | ≤50 | ppm/℃ |
| Power on time | | <0.4 | <0.4 | <0.4 | <0.4 | S |
| Response frequency | | 0.04 | 0.04 | 0.04 | 0.04 | S |
| Output rate | 5Hz,10Hz,25Hz,35Hz,50Hz,100Hz. Can be set |
| Ouput signal | RS485/RS422 optional |
| EMC | According to EN61000 and GBT17626 |
| MTBF | ≥50000 hour/time |
| Insulation Resistance | ≥100 MΩ |
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) |
| Anti-vibration | 10grms,10～1000Hz |
| Protection grade | IP67 |
| Cables | Standard configuration 1 meter, wear-resistant, wide temperature, shielded cable, mm aviation connector |
| Weight | 385g (exclude cable) |
▶ ELECTRICAL CONNECTIONS
CAN wiring definition (7-core wiring definition)
| Line color function | PIN1 | PIN2 | PIN3 | PIN4 | PIN5 | PIN6 | PIN7 |
| DC9~36V | GND | CAN_L | CAN_H | Signal ground | Factory use | Factory use |
