HDA436T-CAN Output Dynamic 3 Axis Tilt Sensor Motion MEMS Angle Sensor

Name: HDA436TCAN Output Dynamic 3 Axis Tilt Sensor Motion MEMS Angle Sensor
Brand: RION
Price: 161.00 USD

Wholesale HDA436T-CAN Output Dynamic 3 Axis Tilt Sensor Motion MEMS Angle Sensor from china suppliers

Model Number : HDA436T-485-68

Place of Origin : Guangdong, China

Brand Name : RION

Packaging Details : cartons

Price : $161.00/Pieces 1-9 Pieces

Certification : CE, ISO

MOQ : 1

Payment Terms : T/T, PayPal

Supply Ability : 1000/month

Delivery Time : 7 days for sample order

Theory : MEMS

Brand : dual axis inclinometer

Voltage - Supply : DC9-3V

Output Type : RS232,RS485,RS422,TTL,CAN 2.0 are optional

Operating Temperature : -40C° ~ +85C °

Mounting Type : horizontal , magnetic based (optional)

Resolution (Bits) : 0.01

Size / Dimension : L107*W54*H31mm

Technology : MEMS

protection class : IP67

High Resolution : 0.01°

Highly anti-vibration performance : >2000g

Zero temperature coefficient : ±0.01 °/℃

Sensitivity temperature coefficient : ≤100ppm/℃

Power on time : 1s

Response time : 0.01s

static accuracy : ± 0.05°

dynamic accuracy : ± 0.3°

Contact Now

HDA436T-CAN Output Dynamic 3 Axis Tilt Sensor Motion MEMS Angle Sensor

▶ PRODUCT FEATURES

★ Wide temperature operation -40 ～ + 85 ℃

★ Resolution 0.01 °

★ IP67 protection level

★ High anti-vibration performance> 2000g

★ Size: L107 × W54 × H31mm

▶ APPLICATION

★ Underground drilling rig attitude navigation

★ Ship navigation attitude measurement

★ Shield pipe jacking application

★ Geological equipment tilt monitoring

★ Satellite communication vehicle attitude detection

★ Orientation measurement based on inclination angle

★ Various engineering machinery inclination measurement

HDA536T	Condition	Index
Measuring	/	Roll ± 180 °, pitch ± 90 °, azimuth ± 180 ° (initial value at power-down is 0 °)
Measuring axis	/	X axis / Y axis / Z axis
Resolution		0.01°
Static accuracy	@25℃	± 0.05°
Dynamic accuracy	@25℃	± 0.3°
Bias Instability (Allan)		8°/h
Zero point temp. coefficient	-40～85°	±0.01°/℃
Sensitivity temp. coefficient	-40～85°	≤100ppm/℃
Power-on startup time	1S
Response time	0.01S
Output signal	RS485/RS232/TTL/CAN2.0A/CAN2.0B
Electromagnetic compatibility	According to EN61000 and GBT17626
MTBF	≥ 50000 hours / time
Insulation resistance	≥100 Megohm
Impact resistance	100g @ 11ms, Triaxial and identical (half sine wave)
Anti- vibration	10grms,10～1000Hz
Protection grade	IP67
Cable	2m length, wear-resistant, oil-proof, wide temperature, shielded cable 5 * 0.34mm2, wire weight 100g
Weight	295g (excluding cable)

HDA436T-CAN Output Dynamic 3 Axis Tilt Sensor Motion MEMS Angle Sensor

Product Tags:

Dynamic 3 axis tilt sensor

CAN Output 3 axis tilt sensor

motion mems angle sensor

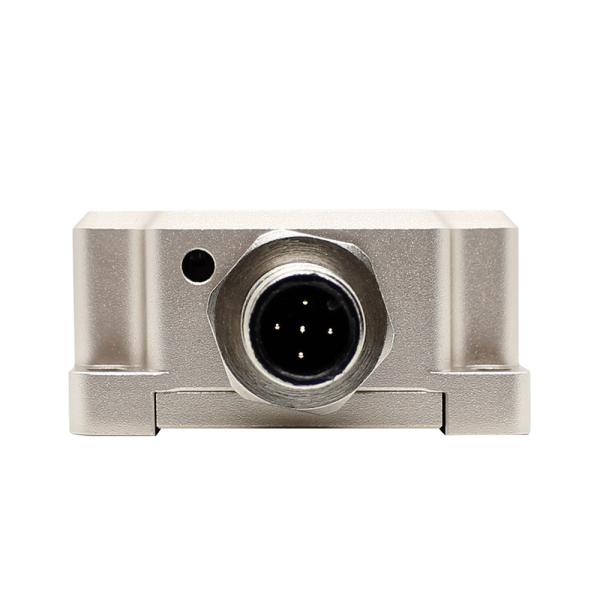

HDA436T-CAN Output Dynamic 3 Axis Tilt Sensor Motion MEMS Angle Sensor Images
