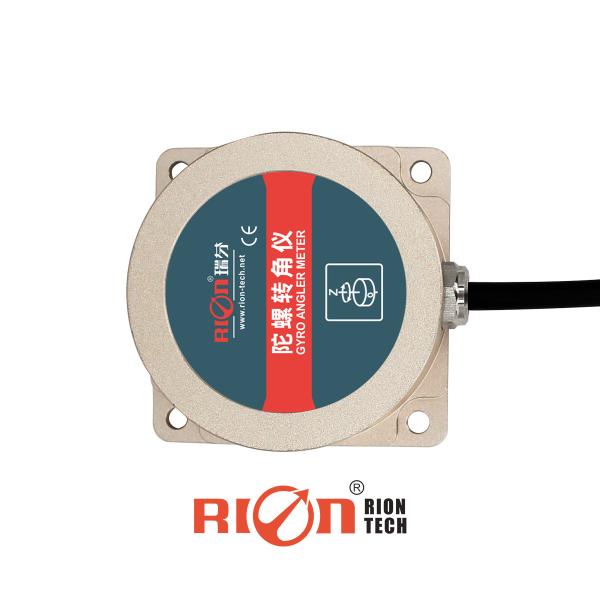

AGV RS485 Angular Mems Sensor Platform Anti Interference

Name: AGV RS485 Angular Mems Sensor Platform Anti Interference
Brand: RION
Price: 228.00 USD

Wholesale AGV RS485 Angular Mems Sensor Platform Anti Interference from china suppliers

Model Number : TL740D-232-68

Place of Origin : Guangdong, China

Brand Name : RION

Packaging Details : 1pcs gyro sensor in each inner box , 50pcs /ctn

Price : $228.00/Pieces

Certification : CE, ISO

MOQ : 1

Payment Terms : T/T, PAYPAL

Supply Ability : 3000/month

Delivery Time : 7 days for samples

Output Type : CAN , digital

Usage : Position Sensor

Theory : Capacitance Sensor

Output : Digital Sensor

gyro sensor Mesuring range : Azimuth Angle (±180)

Acquisition bandwidth : >100Hz

Resolution : 0.01°

Azimuth accuracy : <0.1°/min

Nonlinear : 0.1% of FS

Max angle rate : ≥300 °/s

Starting time : 30s (Static)

Input voltage : DC9-36V

Contact Now

high reliable Industry Grade MEMS Angular Rate Sensor for AVG Vehicle Using

Reborn , Core upgrade

* Small drift,
* Stable performance
* Anti-interference
* Anti vibration

This product is specifically used for robotic cars, vehicle azimuth orientation, and other related applications of AGV., instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.

Key Features

Azimuth angle output
Strong vibration resistance
Light weight
Long life,strong stability
Cost-effective
All solid state
Compact & light design
RS232/RS485 output optional
DC9~36V power supply

Application

AGV truck
Car Navigation
3D virtual reality
Platform stability
Auto safety system
Turck-mounted satellite antenna equipment
Industrial control
Robot

Parameters

TL740D
Mesuring range	Azimuth Angle (±180)
Acquisition bandwidth (Hz)	>100
Resolution(°)	0.01
Azimuth accuracy (°/min)	<0.1
Nonlinear	0.1% of FS
Max angle rate (°/s)	≥150
Accelerometer range (g)	±4
Acceleroemter resultuion(g)	0.001
Acceleroemter accuracy(mg)	5
Starting time(s)	30(Static)
Input Voltage(V)	+9~36V
Current (mA)	60(12V)
Working Temp.(℃)	-40 ~ +85
Storage Temp(℃)	-40 ~ +85
Starting time(s)	5(Static)

Vibration(g)	5g~10g
Impact(g)	200g pk,2ms,½sine
Working life	10 years
Output rate	5Hz,15Hz,25Hz,50Hz can set
Output signal	RS232 or RS485
MTBF	≥50000 hours /times
Insulation resistance	≥100 Megohm
Impact resistance	100g@11ms,3Times/Axis(half sinusoid)
Anti-vibration	10grms,10~1000Hz
Protecting	IP67
Connector	matched with 1m cable
Weight	152g(without cable)

Ordering information

TL740D-232	RS232 output mode
TL740D-485	RS485 output mode

AGV RS485 Angular Mems Sensor Platform Anti Interference

2. The installation of the instrument should be kept parallel to the surface of the measured object, and reduce the influence of the dynamic and acceleration on the angle meter. Incorrect installation will lead to measurement errors, with particular attention to "surface" and" line "

1)The mounting surface of the instrument fixing must be close, smooth and stable with the measured surface. If the mounting surface is not smooth, the angle error of angle measurement can be caused easily. See figure Pic.AB

2)The axis of the instrument must be parallel to the axis of measurement, and the two axis should not be included angle as far as possible , see figure Pic.CD

5. After the switch is started, the angular gyro sensor needs to be static 20S, and the initial value of the measuring unit is restored, so as to ensure the measurement precision of the product. If there is no such operation, the product can also be used normally, but can not reach the normal precision standard .
